Tracking stents, instruments and embolic agents without ionizing radiation
Endovascular interventions are guided by X-ray fluoroscopy today. Magnetic particle imaging offers a radiation-free alternative with high temporal resolution, provided that instruments and implants can be made visible. In a series of studies with the radiology departments in Lübeck and Hamburg, we investigated how metallic implants interact with the MPI fields and how instruments can be marked.
Bare-metal stents generate a signal of their own in MPI. Their magnetic properties allow the position of a stent to be tracked, while the heating of large endovascular stents and stent grafts in the drive field was characterized to assess safety.
Instrument markers made of water-stable SPION coatings are simple to fabricate and remain visible in MPI even after prolonged exposure to water, which makes them suitable for preclinical catheters and stents.

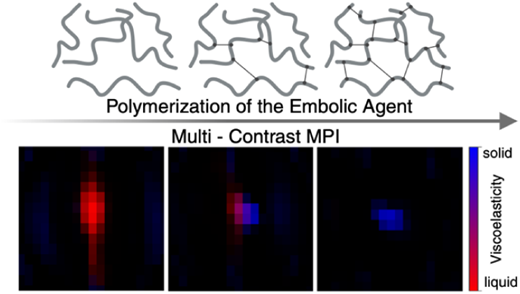

Liquid embolization with MPI-based guidance allows the distribution of an embolic agent to be monitored in real time.
Bimodal OCT/MPI combines the high-resolution intravascular optical coherence tomography with the volumetric MPI information to estimate the catheter trajectory.

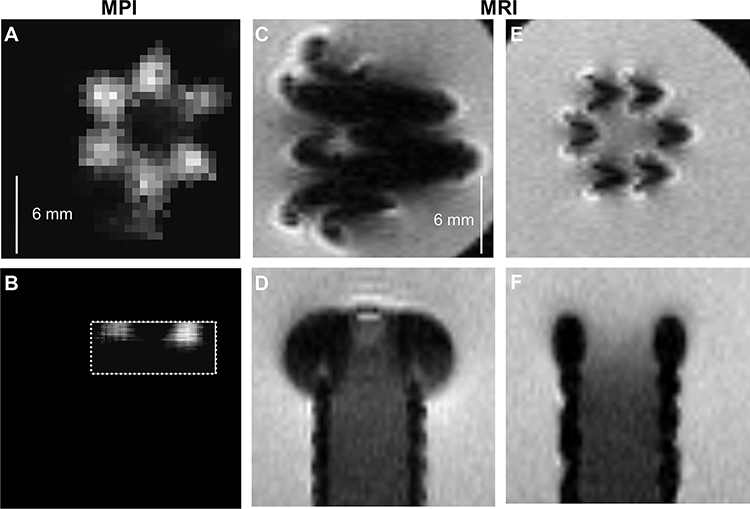

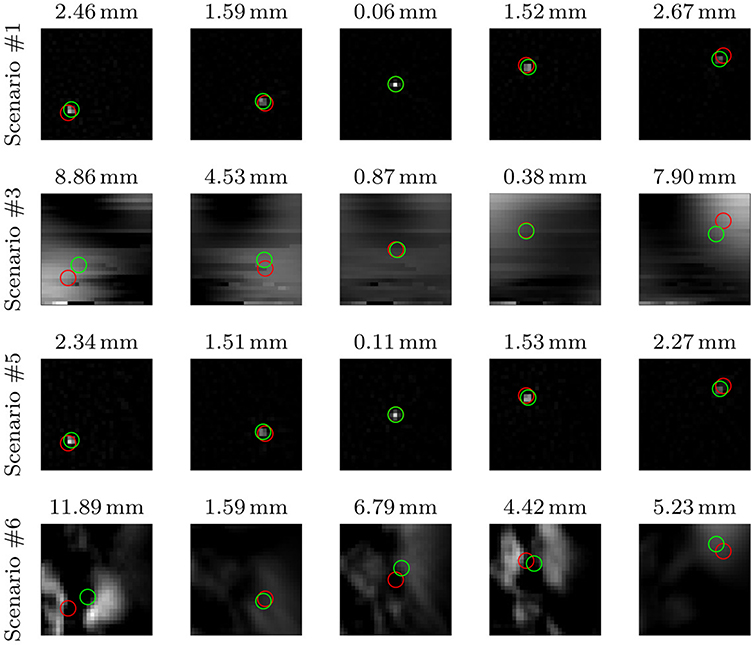

Left: reconstructed MPI images and centers of mass of tracked bare-metal stents (Wegner et al., International Journal of Nanomedicine 2024). Right: MPI images of a stent with water-stable instrument markers (Wegner et al., Medical Devices: Evidence and Research 2026).
